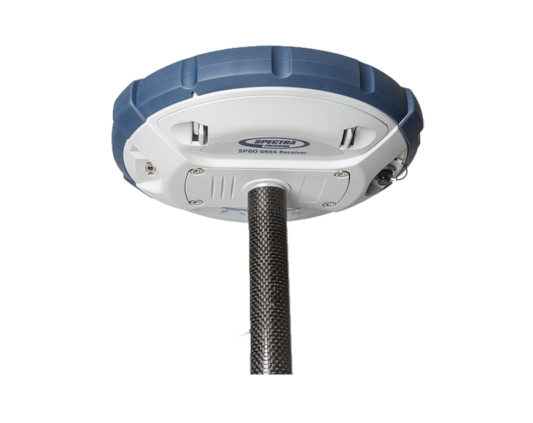

Spectra Precision SP60 GNSS receiver

FEATURES & BENEFITS
Extended scalability
Z-Blade GNSS-centric technology
240-channel 6G ASIC
Anti-theft technology
Long Range Bluetooth
Trimble CenterPoint® RTX

OVERVIEW
The SP60 is a new generation GNSS receiver offering a high level of flexibility to cover any demand from GIS all the way up to sophisticated RTK and Trimble RTX™ capable solutions.Combining the unique all-signals tracking and processing Z-Blade GNSS-centric technology and L-band capability for satellite-delivered Trimble RTX correction services, the SP60 receiver provides the most reliable measurements and the highest possible accuracy under any conditions anywhere in the world.

The SP60 GNSS receiver has been designed to meet the needs of surveyors or location professionals. Extremely scalable and versatile, the SP60 can be used for virtually any task from simple GIS workflows to the most demanding surveying jobs.

The SP60’s Z-Blade GNSS-centric technology delivers fast and reliable GNSS positioning utilizing all available GNSS signals to produce the optimal solution even in challenging environments. GPS-only, GLONASS-only or BeiDou-only positioning modes are available when necessary.

The patented inside-the-rod antenna extends the RTK radio range as well as protects the antenna. Anti-theft technology protects your investment by making the receiver unusable if the SP60 base has been moved. Satellite delivered corrections from Trimble RTX services are available over L-Band and IP. Depending on the accuracy of your job, a range of services is available including CenterPoint, RangePoint, ViewPoint and FieldPoint RTX.

For small jobs of a few hundred meters, RTK jobs can be completed quickly and efficiently by using Long range Bluetooth. Unlike UHF radios which may require a license, Long range Bluetooth is fast and easy to setup making this solution ideal for small site surveys.

With scalable configurations, the SP60 is the most versatile receiver on the market and will meet the demand of your specific jobs.

General
Weight 2.08 lb (930 g)
Warranty 2 year manufacturer's
Dimensions 8.3”L x 8.3”W x 2.3”H
Display/Keypad
Type LED light
Software
On-Board Spectra Precision Survey Office Basic Software
Upgradeable yes
Temperature
Operating -40° to +149°F (-40° to +65°C)
Storage -40° to +185°F (-40° to +85°C)
Battery/Power
Battery Life 10 hours
Power Source Li-ion battery, DC power
Voltage 7.4 V, 2600 mAh
Tracking Features
Satellites GPS, GLONASS, BeiDou, Galileo, QZSS, and SBAS
Frequency L1/L2
Channels 240
RTK Yes
Antenna UHF
Range >25 mi (>40 km)
Applications
Mapping Yes
Static Survey Yes
Kinematic Survey Yes
Accuracy
RTK Horizontal: 8 mm + 1 ppm, Vertical: 15 mm + 1 ppm
Static Horizontal: 3 mm + 0.5 ppm, Vertical: 5 mm + 0.5 ppm
Post Processing Horizontal: 3 mm + 0.5 ppm, Vertical: 5 mm + 0.5 ppm
DGPS Horizontal: 25 cm + 1 ppm, Vertical: 50 cm + 1 ppm
SBAS Horizontal: < 50 cm, Vertical: < 85 cm
Memory
On-Board 256 MB internal memory NAND Flash
Functions
Raw Data Recording Yes
Rover Configuration Yes
Base Configuration Yes
Post Processing Yes
NTRIP Protocol Direct IP
RTK Network Rover VRS, FKP, MAC
Operating System
Processor SPSO
Communication Interface
Bluetooth 2.1 + EDR. Long range: Class 1 (19dbm)
Internal UHF PN 67410-11 or 67410-12 antenna
USB USB 2.0/UART and USB OTG
RS232 (9-pin serial adapter) Yes
NMEA 0183 Yes
Advanced Features
Weather Protection Yes
Shock Protection Yes
