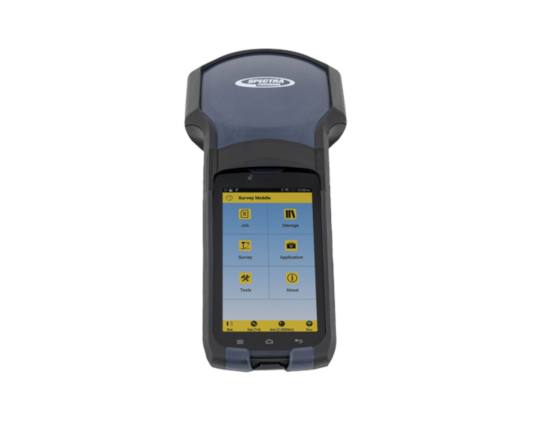

Spectra Precision SP20 Portable GNSS

The Spectra SP20 handheld GNSS receiver offers innovative camera-enabled centimeter accurate logging in an everyday GIS and Survey tool.
Rugged, lightweight and versatile, the SP20 delivers high-end performance. Yet it’s an easy-to-use, time-saver tool that delivers the accuracy (meter to centimeter) you choose, that’s just right for the job.
With Android-based ease and versatility it’s the optimal tool for cadastral, construction, or topo surveys; a range of GIS jobs from data collection to inspection and maintenance; as well as for non-traditional geospatial professionals. The 5.3 ’’ screen neatly displays the new workflow using a camera to ensure 2D centimeter accuracy handheld and 3D centimeter accuracy with monopole setup. Integrated high precision GNSS
    Ergonomic design
    Android Operating System
    Handheld accuracy

GNSS CHARACTERISTICS

240 GNSS channels
GPS L1C/A, L1P(Y), L2P(Y), L2C
GLONASS L1C/A, L2C/A
BeiDou B1 (phase 2), B2
Galileo E1, E5b
QZSS L1C/A, L2C, L1SAIF
SBAS L1C/A
L-band
Scalable accuracy from meter to cm (meter, sub meter (30/30), dm (7/2), cm)
Patented Z-Blade technology for optimal GNSS performance
Full utilization of signals from all 6 GNSS systems (GPS, GLONASS, BeiDou, Galileo, QZSS and SBAS)
Enhanced GNSS-centric algorithm fully-independent GNSS signal tracking and optimal data processing, including GPS-only, GLONASS-only or BeiDou-only solution (autonomous to full RTK)
Fast Search engine for quick acquisition and re-acquisition of GNSS signals
Patented SBAS ranging for using SBAS code & carrier observations and orbits in RTK Processing
Patented Strobe™ Correlator for reduced GNSS multi-path
Supported data formats: ATOM, CMR, CMR+, RTCM 2.1, 2.3, 3.0, 3.1 and 3.2 (including MSM), CMRx and sCMRx
REAL-TIME ACCURACY (RMS)1,2

SBAS (WAAS/EGNOS/MSAS/GAGAN)
Horizontal: < 50 cm
Vertical: < 85 cm
Real-Time DGPS position
Horizontal: 25 cm + 1 ppm
Vertical: 50 cm + 1 ppm
Real-Time Kinematic Position (RTK)3
Horizontal: 10 mm + 1 ppm
Vertical: 15 mm + 1 ppm
CENTERPOINT RTX 1,2
Horizontal: 4 cm (0.13 ft)
Vertical: 9 cm (0.29 ft)
Convergence time: 30 minutes or less6
REAL-TIME PERFORMANCE
Instant-RTK® Initialization
Typically 2 sec for baselines < 20 km
Up to 99.9% reliability
RTK initialization range: over 40 km
POST-PROCESSING ACCURACY (RMS)1,2

Static & Fast Static
Horizontal: 3 mm + 0.5 ppm
Vertical: 5 mm + 0.5 ppm
High-Precision Static 4
Horizontal: 3 mm + 0.1 ppm
Vertical: 3.5 mm + 0.4 ppm
DATA LOGGING CHARACTERISTICS

Recording interval: 1 - 999 seconds
PROCESSOR

Qualcomm Snapdragon 410
Quad-core
Clock frequency: 1.2 GHz
OPERATING SYSTEM

Android® 6.0 (Google certified)
Languages available: Afrikaans, German, English, Spanish, French, Italian, Portuguese (Portugal and Brazil), Japanese, Korean, Simplified Chinese, Greek, Russian, Azebaijani, Czech, Danish, Lithuanian, Hungarian, Dutch, Norwegian (Bokmal), Romanian, Finnish, Swedish, Turkish, Bulgarian, Serbian (Cyrillic), Hindi, Polish
Software package includes:
Google Mobile Services, Sat-Look
MEMORY

2 GB SDRAM
Storage: 16 GB (non volatile).
MicroSDHC™ memory card: (up to 64 GB, SanDisk®, KingstonR recommended)
COMMUNICATIONS

Cellular
GSM (850,900,1800,1900), GPRS, EDGE, UMTS, WCDMA (B1, B2, B5, B8), HSPA, TDSCDMA (B34, B39), LTE-FDD(B1, B3, B4, B5, B7, B8, B20), LTE-TDD (B38/B39/ B40/B41)
Wi-Fi (IEEE) 802.11 b/g/n
Bluetooth 4.0 dual mode
USB (micro B USB connector)
NFC
INTERFACE

USB 2.0 (micro)
External antenna connector (TNC)
Audio jack 2.5 plug (CTIA/AHJ standards)
ENVIRONMENTAL CHARACTERISTICS

Operating temperature: -20° to +60°C (-4 to 140°F)
Storage temperature: -30° to +70°C without battery (-22 to 158°F) 5
Humidity: 95% non condensing
Water & dust proof: IP67
Free drop: 1.2 m on concrete
Shocks: MIL STD 810 (fig 516.5-10) (01/2000)
Vibration: MIL-STD-810F (fig 514.5C-17) (01/2000)
POWER CHARACTERISTICS

Battery Li-Ion: 6400mAh
Battery life: > 8 hrs @ 20 °C with GNSS on
Charging time: 4 hours
Removable battery
PHYSICAL CHARACTERISTICS

Size: 29.5 x 12 x 4.5 cm (11.6 x 4.7 x 1.8 in)
Weight: 850 g (1.87 lb)
User interface

2 volume keys, on/off/reset key, 2 programmable keys, standard Android touch panel buttons
On screen keyboard display
Size: 5.3” capacitive multi touch
Resolution: 1280x720 pixels
Brightness: 450 Cd/m2
Gorilla Glass damage-resistant
Auto rotate between Portrait and Landscape
MULTIMEDIA & SENSORS

Rear camera: 13 M pixels with flash light
Front camera: 2 M pixels
E-Compass
G-sensor
Speaker
Microphone
Light sensor
STANDARD ACCESSORIES

Handstrap
Screen protectors (x2)
A/C charger
USB cable
Pouch
Battery door opener
Monopole adaptor
OPTIONAL ACCESSORIES

External GNSS antenna
Pole bracket
Monopole
OPERATING MODES

RTK rover: Direct IP, NTRIP (VRS,FKP,MAC networks)
Post-processing
Trimble RTX (IP and satellite)
FIELD SOFTWARE

Survey Mobile
MobileMapper Field
or 3rd party Android applications
1 Accuracy and TTFF specifications may be affected by atmospheric conditions, signal multipath, satellite geometry and corrections availability and quality.
2 Performance values assume minimum of five satellites, following the procedures recommended in the product manual. High multipath areas, high PDOP values and periods of severe atmospheric conditions may degrade performance. Real time accuracies depend on SP20 accuracy option. PP accuracy obtained with ATOM files processed by SPSO.
3 SP20 cm used with Monopole accessory
4 Long baselines, long occupations, precise ephemeris used (5) Batteries can be stored up to +70°C.
6 Receiver convergence time varies based on GNSS constellation health, level of multipath, and proximity to obstructions such as large trees and buildings. Convergence can be improved in RAM eanbled regions.
