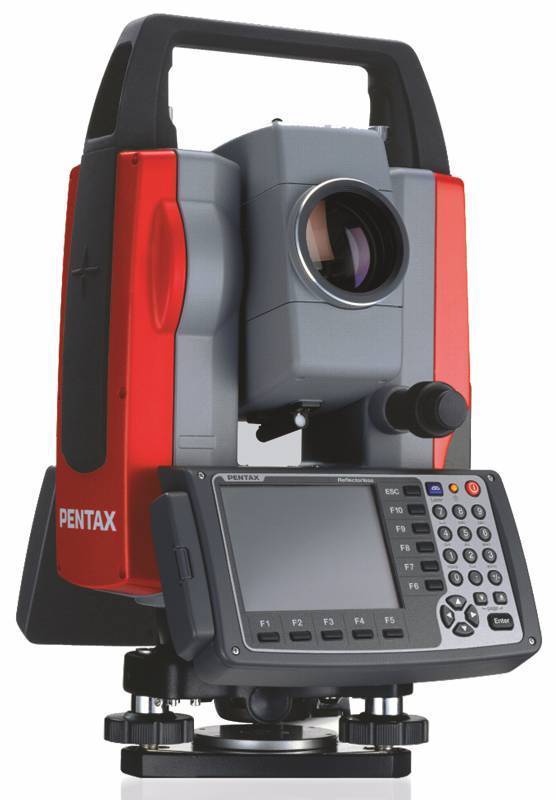

Pentax W-800NX Total Station

The W-800NX Series excels with:
Mode Mirrorless measurement.
The automated Optical + that photovoltaic (Auto-focus + Power Focus)
Operating System Microsoft Windows CE.NET 4.2
Processor Intel XScale 400MHz
SDRAM 64MB
External Memory CompactFlash, SD Card , support up to 2GB
color display touch Application 640x480 TFT LCD (QVGA)
This is one of the high-end product line of PENTAX.
Please contact us directly to get the best price!

Product name: PENTAX Total Station W-822NX / W-823NX / W-825NX / W835NX
- Magnification: 30x
- Optical autofocus: Auto-focus + Power Focus
- OS Microsoft Windows CE.NET 4.2 , Processor of Intel Xscale, 400MHz , SDRAM 64MB , FLASH 128MB (built-in)
- Mini-B USB slot CF card, SD up to 2GB
- screen color LCD TFT touch 640x480 (QVGA)
- angle read display:
1 "
- Minimum display distance:
FINE: 0.1mm
NORMAL: 1mm
TRACKING: 10mm
- Angle measurement accuracy:
2 "(W-822NX)
3" (W-823NX)
5 "(W-825NX / W-835NX)
- Minimum visibility distance: 1.0 m
- Automatic optical control (AF) + photoelectric regulator (PF): Yes
- Measurement distance:
1 mirror: 3,400m
3 mirror: 4,500m Mirrorless
: 270m
- Distance measurement accuracy:
Mirror included: 2mm + 2ppm Mirrorless
: 5mm + 2ppm (W-822NX / W-823NX)
5mm + 3ppm (W-825NX / W-835NX)
7mm + 10ppm (over 200-270m measuring distance)
- Measurement time:
NORMAL: 2.0s (1mm)
TRACKING: 0.4s (10mm)
- Working time of battery:
8 h
- Charging time:
2.2 h
- Weight: 6.3 kg (W-822NX / W-823NX / W-825NX ) / 6.1 kg (W-835NX)
