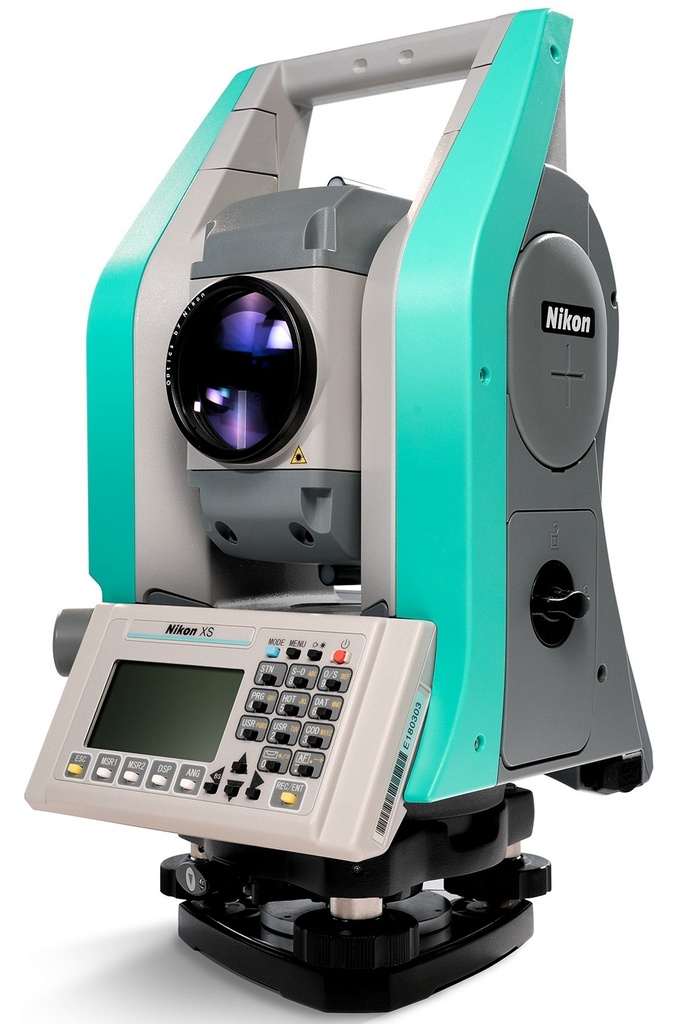

Nikon XS Series Reflectorless Total Station

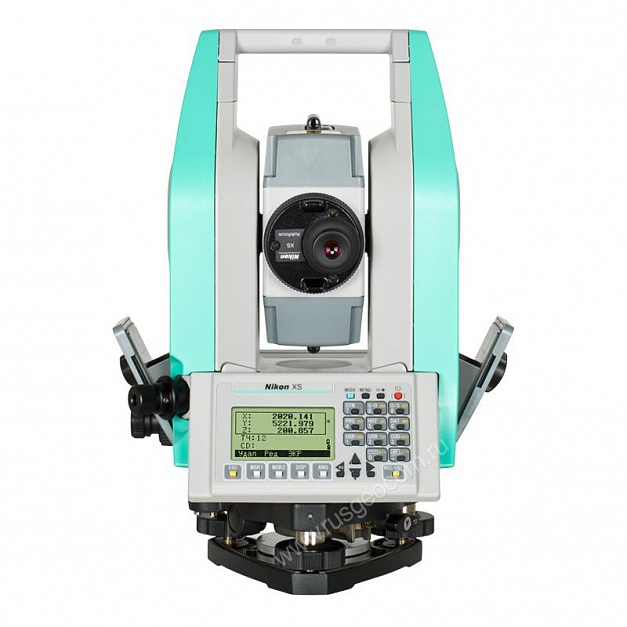

Nikon XS Series
With its lightweight, compact design and easy setup, Nikon XS mechanical total station makes survey work fast, efficient and easy. Its onboard software ensures smooth, efficient workflows from the field to the office. When you work with Nikon XS, you get the work done right the first time. There’s no need to return to the job…
Nikon-Trimble Introduces New Mechanical Total Stations to Enhance Productivity
BERLIN, Sept. 26, 2017— Nikon-Trimble Co., Ltd. introduced today the Nikon XF and Nikon XS mechanical total stations to expand its portfolio of solutions for mainstream surveying and construction applications. The announcement was made at INTERGEO 2017, the world’s largest conference on geodesy, geoinformatics and land management. Continuing a legacy of high-quality optics, the Nikon…
Layout Pro
Layout Pro Field and Layout Pro Office construction positioning solutions give contractors more control of their job sites allowing significant improvements in construction accuracy and productivity. Layout Pro Field software lets you carry, manage, work with, and lay out your site using total station for positions and distance measurements. Layout Pro Field and Layout Pro…

Hot swappable batteries that have the power to last all day, and then some.
Superior Nikon optics and autofocus for crisp, bright sightings even in low light conditions.
A full range of accuracies to ensure you have exactly the equipment you need for the work you do.
PIN security to prevent unauthorized use.
800m non-prism EDM
Angular Accuracy 1" .2" 3" and 5"
Can Operate With Data Collector Yes
Dual Face Keypad Yes
Quantity Each
Operating Temperature –20 °C to +50 °C (–4 °F to +122 °F)
Battery Life 18 hrs
Warranty 2 Years
IP Rating IP66
Bluetooth Enabled Yes
Reflectorless Yes
Measurement Range With single prism 6.25 cm (2.5 in): 1.5 m to 5000 m (4.9 ft to 16404 ft)
Plummet Type Laser
Display LCD
Built-in Software Config Only
Backlit Display graphic LCD (128 x 64 pixels)
Serial Port RS-232C
Musb USB (Host)
Charging Time 6 hrs
Magnification 30x
Field Of View 1° 25’
Brand Nikon
Dimensions (W x D x H): 206 mm x 169 mm x 318 mm (8.1 in x 6.7 in x 12.5 in)
Weight Main unit: 4.3 kg (9.5 lb)
