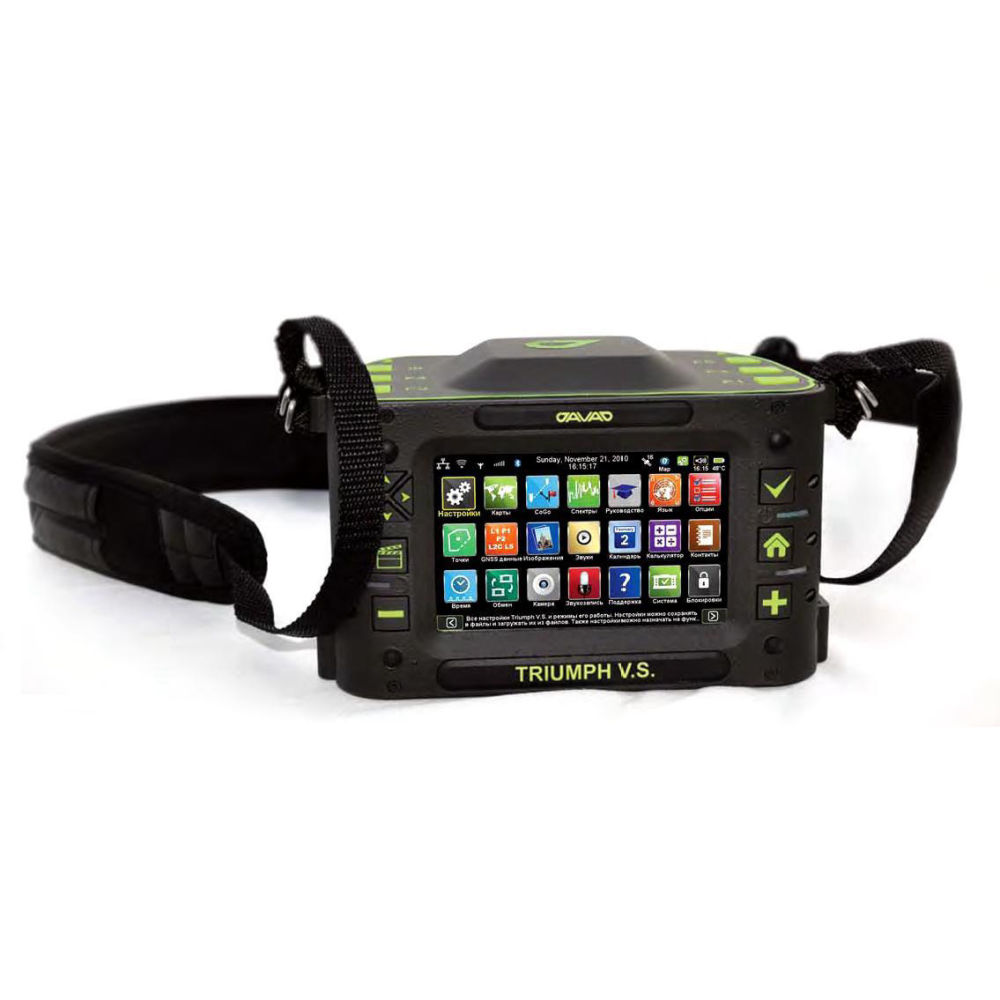

JAVAD TRIUMPH-VS GNSS Receiver


    Share this product


    Cette combinaison n'existe pas.



    Complete 5 Hz RTK Base OR Rover System, including:
    216 All-In-View Channels; GPS L1/L2/L2C/L5; GLONASS L1/L2; 5 Hz RTK/DGPS Rover; RTK/DGPS Base; 5 Hz Raw Data Recording; 256 MB Internal Data Storage; 4 GB MicroSD Card; Two USBs; RAIM; Communication Channel (UHF or GSM/GPRS/EDGE); Internal Triple Frequency GPS/GLONASS/Galileo Geodetic Antenna; Integrated High Resolution (800x480 pixels) Controller and Software; Advanced Multipath Reduction; WAAS/EGNOS; Ethernet; WiFi 802.11b; Bluetooth; Removable/Rechargeable Li-Ion Battery Pack (7.2V, 8.8Ah(63.36Wh), >10 Hours); External Power Supply/Charger; Soft Carrying Case; Shoulder Strap; Graduated Monopod; Power and USB Cables; Tripod Adaptors; Stylus and Support Legs
    Expansions and Options:
    Galileo E1/E5A on all current and future Galileo Satellites;
    Up to 100 Hz RTK; Up 100 Hz Data Recording; Up to 4 GB Internal Data Storage;
    External Antenna Connection; Timing Signals (Event Marker and 1-PPS).
    Second Communication Channel (UHF or GSM/GPRS/EDGE);
    GLONASS 0.2mm Dynamic Calibration (this option removes the GLONASS inter-chanel biases. This patented option is available only in our products);
    In-Band Interference Rejection (this option removes interferences like TV and radio station harmonics which fall within GPS, GLONASS or Galileo bands. This patented option is also available only in our products);
    Audio and Visual Aid/Correction (This option not only provides for two cameras, compass and inclinometers visual aids, but also use information from these sensors to correct for mis-alignements. This patented option is available only in our products);
    1. High precision all-frequencies GNSS Antenna GPS+GLONASS+Galileo.

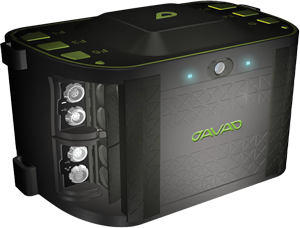

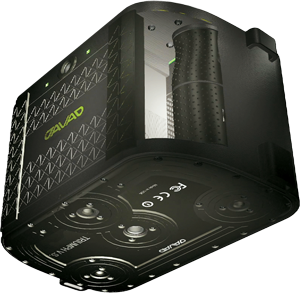

    2. Revolutionary, compact, 216-channel GNSS Receiver.
    Triumph-VS Triumph-VS
    External GNSS antenna
    External UHF antenna
    1PPS/Event
    Ext. Freq In/Out

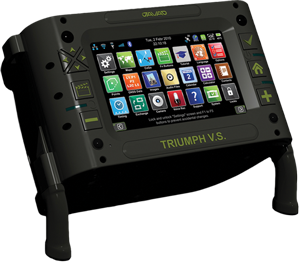

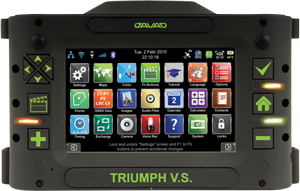

    3. Breakthrough, wide-screen, high-resolution handheld controller. Loaded with Revolutionary Software.
    Triumph-VS Triumph-VS
    External GNSS antenna
    External UHF antenna
    1PPS/Event
    Ext. Freq In/Out
