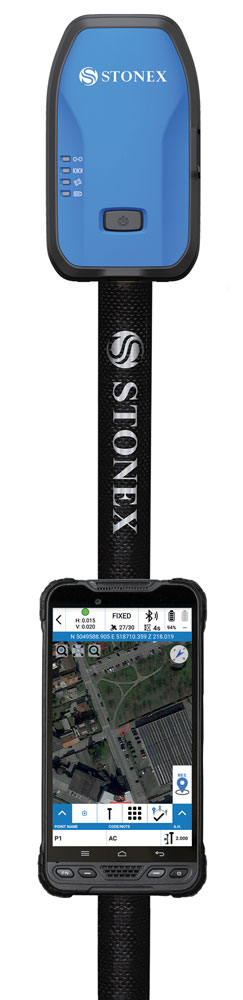

Stonex S500 GNSS receiver

Compared to traditional GIS products, the S500 is an intelligent, high precision data acquisition receiver that can be used without the need to hold it in your hand and therefore offers greater freedom of movement and flexibility.

Thanks to the internal web interface, the receiver can be configured and prepared to receive RTK differential corrections and ready to be connected to any software for Survey or GIS.

The S500 offers high-precision positioning and is equipped with a high speed 4G module. The positioning is so fast and reliable that it can also be used by vehicles moving at high speed. S500 works with all 4 satellite system (GPS, Glonass, BeiDou, Galileo), support access to external differential RTK signal to get centimeter level positioning results.

Rubber protective cover, increase the protection of the device, non-slip and no damage, the whole device protective class reaches IP67, and it resists 1.2m hard ground drop.

Channels: 432
GPS: L1
GLONASS: L1
BeiDou: B1
Galileo: E1
SBAS: L1
Position Rate: Up to 20 Hz
Signal Reacquisition: < 1 sec
RTK Initialization: Typically > 120 sec
Hot Start: Typically < 15 sec
Initialization Reliability: > 99.9%
Post Positioning: 1 cm
DGPS: < 50 cm
RTK: 3 cm
Integrated GNSS Antenna: GPS, GLONASS, BeiDou, Galileo
Processor: SC20
RAM: 512 MB
Flash Memory: 8 GB
Operating System: Android
Internal Modem: GSM, GPRS, EDGE, WCDMA, LTE
Bluetooth: 4.0, 2.4 GHz
Wi-Fi: 802.11 g
Battery: Rechargable 3.8 V – 6.000 maH
Working Time: Up to 10 hours (Post Processing)
Up to 8 hours (RTK with GSM)
Charge Time: Typically 6 hours
Size: 136 cm x 78 cm x 31 cm
Weight: 350 g
Operating Temperature: -30 °C to 65 °C
Storage Temperature: -40 °C to 80 °C
Waterproof/Dustproof: IP67
