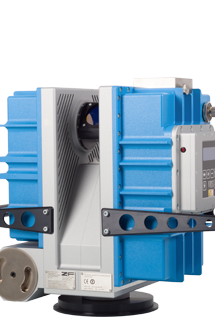

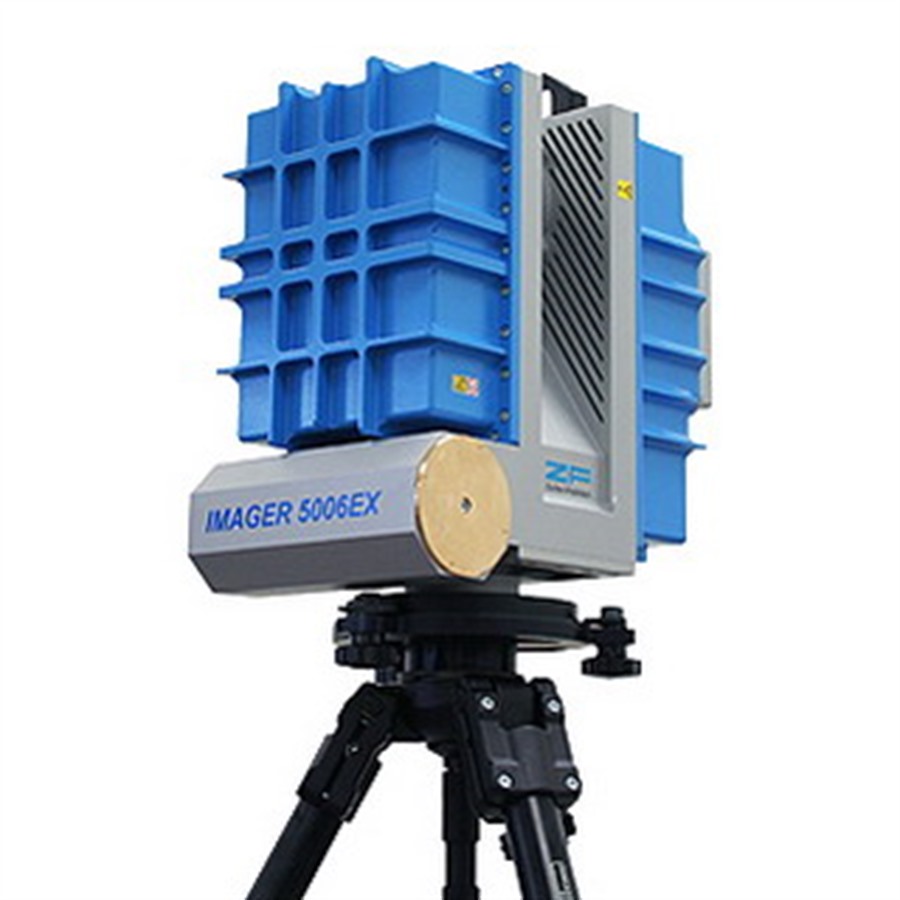

Z+F IMAGER® 5006EX, 3D laser scanner

Description Specifications Additional Information

---

The safe way to scan…
Explosion-proof, robust, reliable: the Z+F IMAGER® 5006EX
Potentially explosive environments provide unique challenges to
surveying. In a cooperation between Zoller + Fröhlich and the DMT
GmbH & Co. KG, the Z+F IMAGER® 5006EX was developed - the only
explosion-proof laser scanner in the world - keeping those special
scanning requirements in mind.

The Z+F IMAGER® 5006EX offers a lot of benefits which raise your
productivity and safety, and reduce costs at the same time.

ATEX certification (for details please see brochure)
100 % stand-alone (battery, PC integrated)
Battery change in explosive environment possible

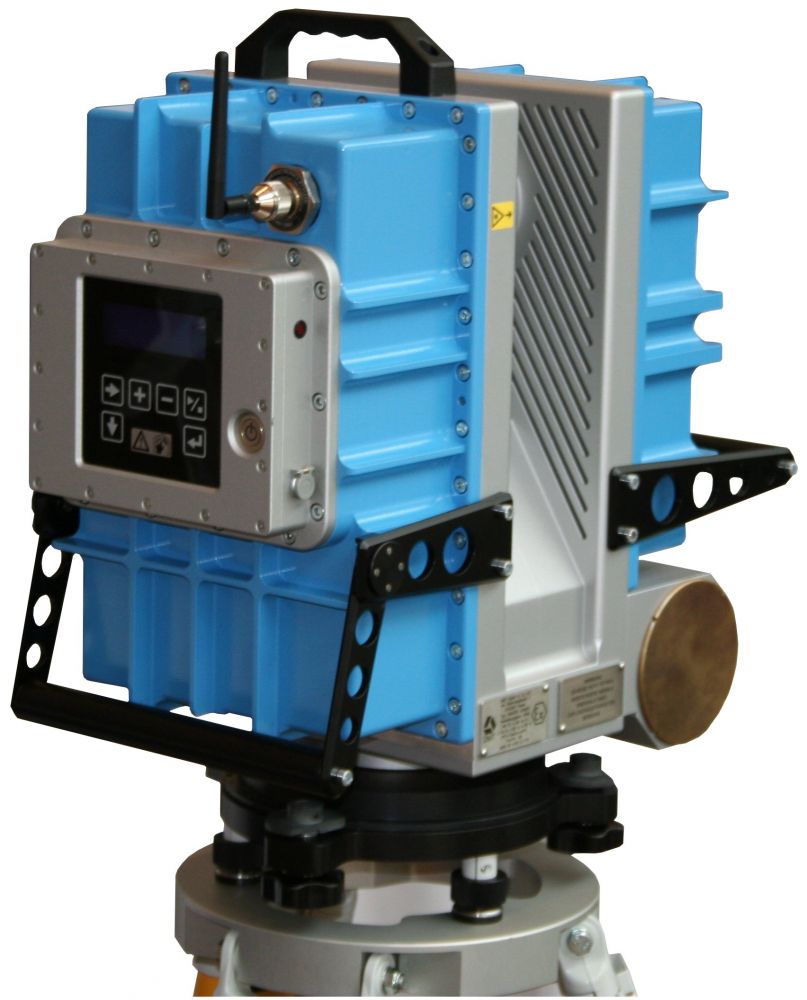

Direct scanner control through built-in control panel
Scanner control via WLAN possible
Range 79 metres

Applications:

Industrial plants
Chemical plants
Mining
All potentially explosive areas

Range 79 m (approx. 259 ft.)
The laser scanner has a nominal range of 79 m. This range allows it to use the scanner in the most potentially explosive atmospheres applications.
508,000 million pixels / sec
With a maximum measurement rate of 508,000 pixels/sec, the Z+F IMAGER® 5006EX is the fastest explosion proof 3D laser scanner in the market.
Field-of-view 310 ° x 360 °
The expanded field-of-view makes it possible to scan a large area and allows to complete the documentation with a small number of scanning positions.
The stand-alone concept guarantees more fl exibility. No external equipment is required to scan in the field. Because of that, additional ignition sources in explosive atmospheres are excluded.
High Data Quality
The Z+F IMAGER® 5006EX has a high angle and distance measuring accuracy, like all 3D laser scanners of the Z+F IMAGER® series. The very low measurement noise guarantees, high data quality on different surfaces and large measuring distance. Even with the fastest data acquisition, the scanner scans very accurate in the millimeter range

Model Number	Z+F IMAGER® 5006EX
Manufacturer Part Number(s)	5006EX
Manufacturer	Z+F
Includes	No
