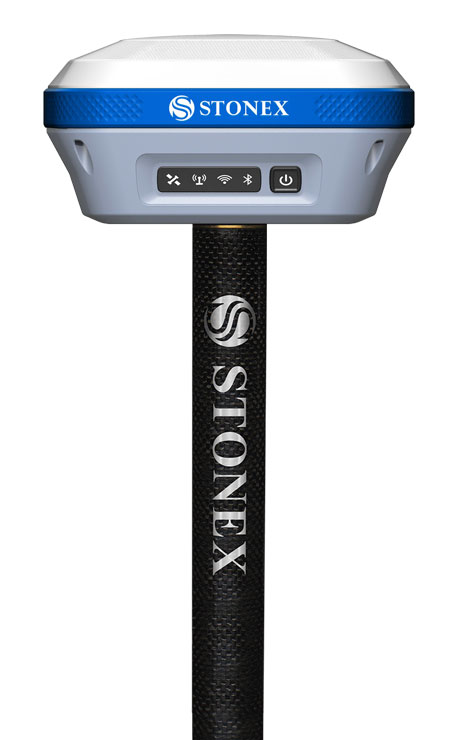

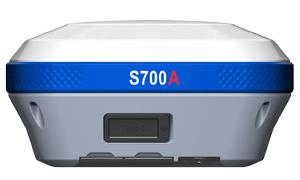

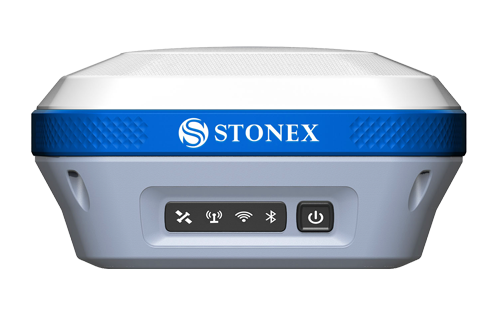

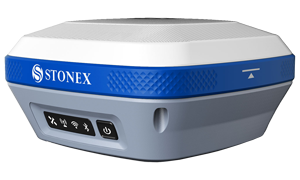

Stonex S700A GNSS Receiver

Modular GNSS system
Stonex S700A is a compact, high-performance GNSS receiver features a multi constellation 700 channels GNSS board.
The customer have the ability to purchase an entry level version, only L1 GNSS and, at any time, it is possible to upgrade the receiver to the full version via activation code.
S700A supports GPS, GLONASS, BEIDOU, GALILEO, QZSS and IRNSS. S700A full version supports also L-Band correction.
The unique internal antenna combines GNSS, Bluetooth and Wi-Fi integrated modules to optimize space and increase performance. This technology provides stronger and cleaner signal monitoring, which means unprecedented results. Designed for all day use in surveying application, S700A includes several features: Linux Operating System, WEB UI interface, 4G Modem, high battery capacity, Type-C connector and IP67 certification.
Stonex S700A GNSS receiver full version, thanks to aRTK function and Atlas® correction service is an ideal solution for any surveying field work and in particular difficult areas. Atlas® delivers world wide centimetre level correction data through L-band communication satellites.

GNSS CHARACTERISTICS
Board: Hemisphere Phantom 40
Channels: 700
GPS: L1C/A, L1C, L1P, L2C, L2P, L5
GLONASS: G1, G2, G3
Galileo: B1, B2, B3, ACEBOC
BeiDou: E1, E5a, E5b, ALTBOC, E6
QZSS: L1 C/A, L1C, L2C, L5, L6
IRNSS: L5
SBAS: L1, L5
L-Band: Atlas Basic/H10/H30
Positioning
Static Survey: 2.5 mm + 1 ppm RMS (Horizontal)
5.0 mm + 1 ppm RMS (Vertical)
RTK (< 30 Km): < 0.6 m (Horizontal)
< 1.0 m (Vertical)
Code Differential: 2.5 mm + 1 ppm RMS (Horizontal)
5.0 mm + 1 ppm RMS (Vertical)
SBAS Accuracy: < 0.6 m (Horizontal)
< 1.2 m (Vertical)
Physical
Size: 140 mm x 140 mm x 71 mm
Weight: 1.10 kg
Operating Temperature: -30 °C to +65 °C
Storage Temperature: -40 °C to +80 °C
Waterproof/Dustproof: IP67
Shock Resistance: Designed to endure a 2 m pole drop onto a concrete floor with no damage
Vibration: Vibration resistant
Power Supply
Battery: Rechargeable 7.2 V – 6.900 mAh
Voltage: 9 to 28 V DC external power input with over-voltage protection (5 pins Lemo)
Working Time: Up to 9 hours
Charge Time: Typically 4 hours
