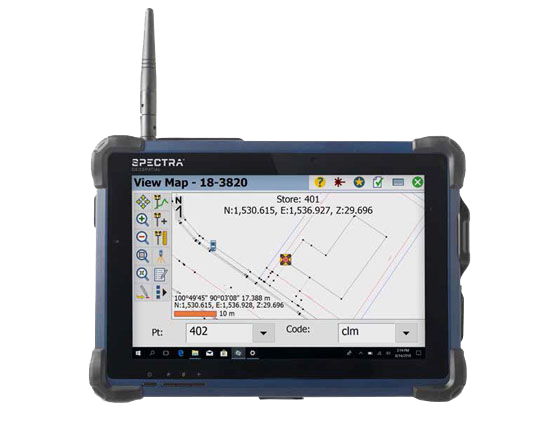

ST10 Tablet Data Collector (Spectra Precision)

The Spectra ST10 Tablet Data Collector is a rugged and versatile data collecting tool designed to meet the accuracy, efficiency, and functionality that land surveying and construction demand. Featuring a 10.1-inch, LED backlit touchscreen display with ten-point capacitive multi-touch and an active stylus, it provides great readability and allows easy management of data. An optional keyboard with trackpad (sold separately) can be attached to convert it into a laptop.

This tablet data collector by Spectra easily connects to compatible total stations and GNSS receivers with the integrated Wi-Fi and Bluetooth technology. It is equipped with a high-sensitivity GNSS/SBAS receiver and built-in sensors—compass and accelerometer—to enable precise and more detailed navigation and tracking. Offering 4G LTE data modem and an optional 2.4GHz radio module, it maintains clear communication and can survey robotically without the need for extra equipment.

Powered by Intel Core i7 processor and 8GB RAM, the Spectra ST10 Tablet Data Collector can perform complex calculations. It utilizes Windows 10 operating system to support both Survey Pro and Layout Pro field software. It includes a 128GB SSD storage and a USB port for convenient data sharing. For user interface, it comes with a power button, an RF switch, and three programmable keys. It is rated IP65 and complies with the MIL-STD-810G standards to ensure durability that can withstand extreme environments.
Configuration Options

The Spectra ST10 Tablet Data Collector comes in modem or radio versions and includes various software package options to meet different surveying applications. Please select your preference from the menu above.

ST10-010-001: ST10 Tablet w/ 4G Modem Only
ST10-S10-001: ST10 Tablet w/ 4G Modem & Survey Pro Standard Software
ST10-011-001: ST10 Tablet w/ 4G Modem & 2.4GHz Radio
ST10-C11-001: ST10 Tablet w/ 4G Modem, 2.4GHz Radio & Layout Pro Robotic Software
ST10-R11-001: ST10 Tablet w/ 4G Modem, 2.4GHz Radio & Survey Pro Robotic Software

STANDARD FEATURES
System
Intel® 6th Generation Core™ i7 processor
Intel HD Graphics 520
8 GB RAM
128GB SSD Storage 1
10.1” LED-backlight screen with 10-point capacitive multitouch
Active Pen support
High-sensitivity GNSS/SBAS receiver and antenna
Wi-Fi 802.11ac, 2.4GHz / 5GHz dual-band
Bluetooth® v 4.2 LE
4G and Cirronet radio versions available 2
User replaceable battery (standard or enhanced capacity), hot swappable
Integrated speaker and microphone
NIST (National Institute of Standards and Technology) compliant BIOS
TPM (Trusted Platform Module) 2.0 support
Rugged ABS + PC plastics and magnesium-aluminum alloy enclosure
Rubber bumpers on each corner for handling protection
MIL-STD-810G Shock, Drop and Vibration
IP65 Dust and Moisture Ingress Protection
OPERATING SYSTEM

Microsoft® Windows® 10 IoT Enterprise
Languages available: Arabic (Saudi Arabia), Bulgarian(Bulgaria), Chinese (Simplified, China), Chinese (Hong Kong), Chinese (Traditional, Taiwan), Croatian (Croatia), Czech(Czech Republic), Danish (Denmark), Dutch (Netherlands),English (United Kingdom), English (United States), Estonian(Estonia), Finnish (Finland), French (France), French(Canada), German (Germany), Greek (Greece), Hebrew (Israel),Hungarian (Hungary), Italian (Italy), Japanese (Japan), Korean(Korea), Latvian (Latvia), Lithuanian (Lithuania), Norwegian,Bokmål (Norway), Polish (Poland), Portuguese (Brazil),Portuguese (Portugal), Romanian (Romania), Russian (Russia),Serbian (Latin, Serbia), Slovak (Slovakia), Slovenian (Slovenia),Spanish (Spain, International Sort), Spanish (Mexico), Swedish(Sweden), Thai (Thailand), Turkish (Turkey), and Ukrainian(Ukraine). Additional languages are available as LanguageInterface Packs.
COMMUNICATIONS
Cellular: 4G LTE, data only 2
Wi-Fi 802.11ac, 2.4 GHz/ 5 GHz dual band
Bluetooth 4.2 LE
Cirronet (Radio version only on select models)
USB 3.0
STANDARD ACCESSORIES

Lanyard
Screen protectors (x2)
Active Stylus
A/C charger
OPTIONAL ACCESSORIES
Detachable full keyboard with trackpad (for hybrid 2-in-1)
Enhanced capacity battery
Office dock with ethernet and dual-display support
Pole bracket with cradle
TECHNICAL SPECIFICATIONS
Physical
Size
198 mm x 283 mm x 40 mm (7.8 in x 11.1 in x 1.6 in)
Weight
1.4 kg (3.08 lbs.)
Processor
Intel® Core™ i7, Clock frequency: 2.5 GHz
Memory
8 GB SDRAM
Storage
128 GB
User Interface
Power button, RF switch, 3 programmable keys
Power / Battery Status LED
Optional detachable full keyboard with trackpad
Battery
11.4 V, 5400 mAh (standard capacity), hot swappable
11.4 V, 8000 mAh (enhanced capacity)
Battery life (enhanced capacity)
~ 10 hours @ 20° C with GPS on 3
ENVIRONMENTAL
Operating Temperature
–20 °C to +60 °C (–4 °F to 140 °F)
Storage
–55 °C to +70 °C without battery (–67 °F to 158 °F)
Humidity
0% - 90% non-condensing
Water & dust proof
IP65
Vibration / Shock resistance
MIL-STD-810G
EMI / EMC tolerance
MIL-STD-461F
INPUT/OUTPUT
Display
LED backlight scratch-resistant, auto rotate
Size
10.1“ capacitive multi-touch
Resolution
1920x1200 px
Brightness
800 Cd/m2
Audio
Built-in microphone and speaker
Audio jack 3.5 mm
I/O
USB 3.0
AC / DC Adapter
Input: 100-240V AC, Output: 19V DC, 3.42A
Sensors
E-Compass, Accelerometer
GNSS

Internal antenna: 72 channels
GPS L1 C/A, GLONASS, Beidou, QZSS, SBAS
Integrated real-time
SBAS 4 (WAAS/EGNOS/MSAS/GAGAN)
Dual constellation system
GPS/GLONASS or GPS/Beidou
Total usable memory will be less depending upon actual system configuration.
Frequencies and channels depending on 4G radio version.
Tested under MIL-STD-810G method 501.6, Procedure II, and method 502.6, Procedure II. Battery capacity is reduced at lower temperatures or extremely high temperatures.
SBAS (Satellite Based Augmentation System), where available.
