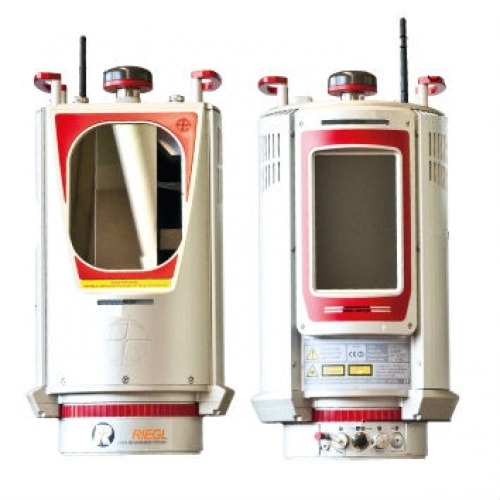

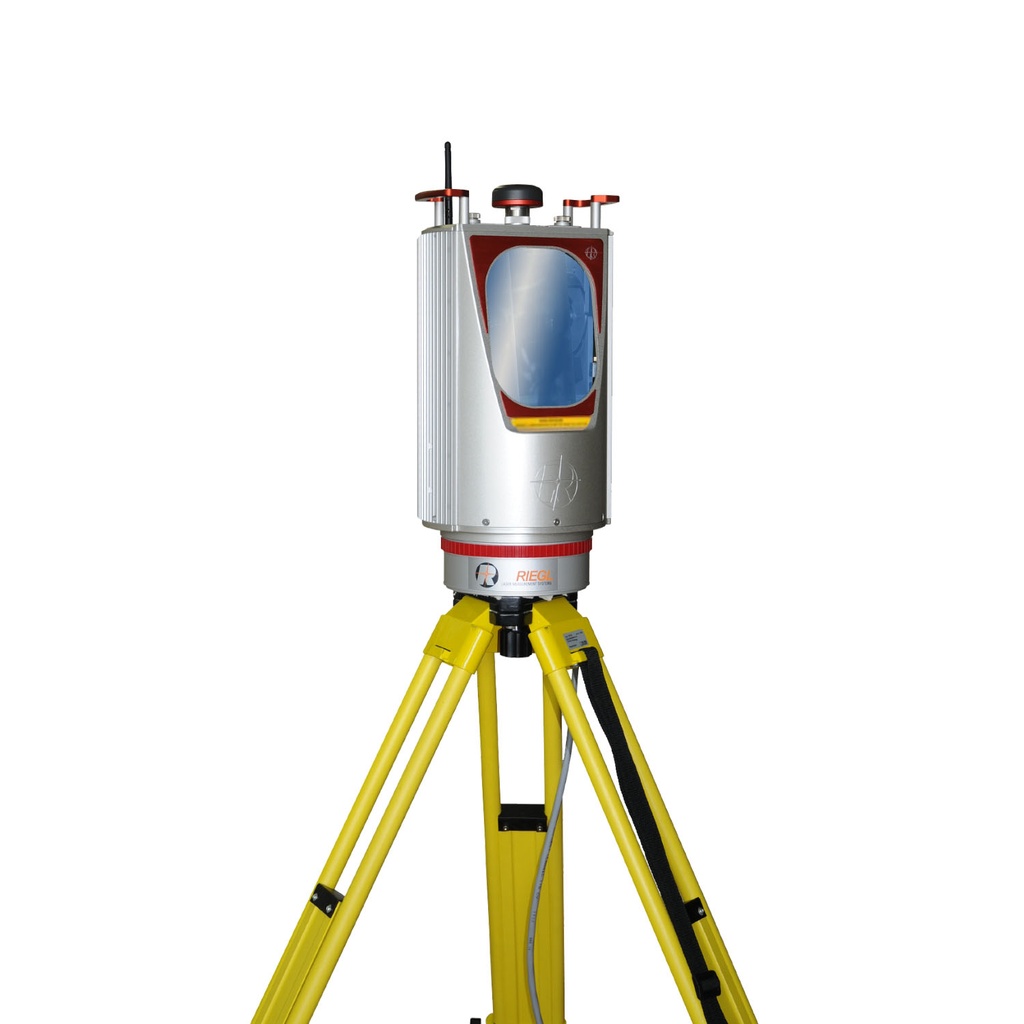

RIEGL VZ-6000 Scanner 3D

This 3D VZ-Line Laser Scanner offers superior and unrivaled long range reflectorless measurement performance of more than 6,000 m.

RIEGL ́s unique V-Line technology is based on echo digitiza-tion and online waveform processing, which means that the VZ-6000 operates even in poor visibility and demanding multi target situations caused by dust, haze, rain, snow. Due to its laser wavelength the instrument is exceptionally well-suited for measuring snowy and icy terrain.

Main Applications

Glacier & Snowfield Mapping
Topography & Mining
Monitoring
Civil Engineering
Archaeology & Cultural Heritage

Better than 6,000 m measurement range
exceptionally well suited for measuring snowy and icy terrain
Wide field of view, 60° x 360°
High speed data acquisition up to 222,000 meas./sec
High accuracy, high precision ranging based on echo digitization and online waveform processing
Multiple target capability
Multiple time around processing
Optional waveform data output
Built-in calibrated digital camera
On-board inclination sensors
Integrated L1 GPS receiver with antenna
Integrated compass
Built-in SSD drive storage
Compact and rugged design
Advanced camera options
