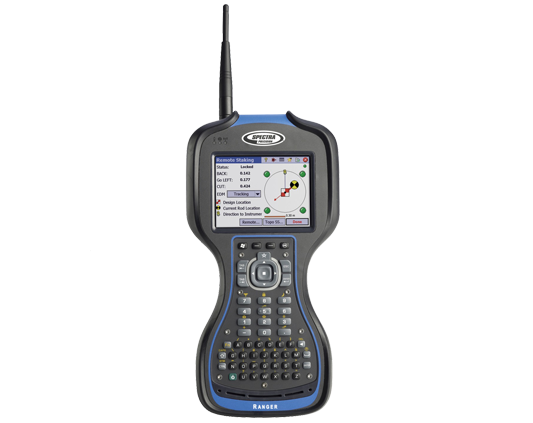

Ranger 3 (Spectra Precision)

FEATURES & BENEFITS
Large, bright, sunlight- readable color VGA screen
Meets MIL-STD-810G standards
IP67 rating
SDHC card slot and USB connections
30+ hour rechargeable battery
Windows Mobile 6 5
Integrated Bluetooth, Wi-Fi, Compass and GPS

OVERVIEW
The third generation Spectra Geospatial Ranger™ Data Collector offers a large bright touch-screen, full alpha-numeric, easy to operate, keypad, and is packed with the features surveyors depend on. Built rugged, it meets rigorous MIL-STD-810G military standard for drops, vibration, humidity and extreme temperatures, and with an IP67 rating, it’s designed to keep your investment and your data safe.

The Ranger features Survey Pro and Windows Mobile 6 5, with the capability to run the mobile version of all your favorite programs including Excel and Outlook. Integrated Bluetooth capabilities let you connect to field equipment without cables. The Ranger 3 comes standard with 8 GB of onboard memory for storing data. Move your data fast and easily using a SDHC card, Bluetooth, USB cable, USB memory stick, WiFi, or GSM WWAN. Choose from four different models of the Ranger with the features that best suits your needs and your budget. They’re all power-packed, so there’s no wrong choice.

SOFTWARE STANDARD
Windows Mobile® 6.5 operating system
Spectra Geospatial field software
• Survey Pro • Layout Pro • FAST Survey
Physical characteristics
• Dimensions - 1141 x 278 x 64 mm, 80 mm, handle included
• Weight
–1.04 kg, rechargeable battery included
–1.10 kg, rechargeable battery and internal 2.4 GHz radio modem included on some models
• Housing - polycarbonate (case), Hytrel® (overmolding)

ELECTRICAL SPECIFICATIONS
• Processor: Texas Instrument Sitara ™ 3715 ARM® Cortex ™ series - A8 processor (800 MHz)
• Memory: 256 MB RAM
• Storage: Non-volatile Flash memory, built-in 8 GB NAND memory extension: SDHC reader for, USB host port • Batteries: Rechargeable 11.1 V lithium-ion battery pack, 2,600 mAh, 28.9 Wh; autonomy: at least 30 hours under normal conditions of use1. Full charge 3.0 hours. • LED indicator lights: 3 tri-color LED indicator lights
• Display: VGA landscape screen 107 mm, 640 x 480 pixels, color TFT readable in direct sunlight, with LED backlight, resistive touch • Keyboard: Alphabetic keyboard with 10-key numeric keypad, navigation buttons and 4 programmable buttons
• Audio: Integrated speaker and microphone with microphone port and 3.5 mm stereo headphones • Inputs / Outputs: Host and client USB port, DC power supply price, 9-pin RS-232 serial port
• Wireless: integrated Bluetooth 2.0 + EDR, Wi-Fi 802.11 b / g integrated, quadband GSM / GPRS / EDGE integrated: 850/900/1800/1900 MHz, 2/6 Mbit / s 3G HSDPA GSM, dual band CDMA2000 on the bands BC0 and BC1 (800 / 900MHz), WWAN *, integrated radio modem * of 2.4 GHz with spread spectrum and frequency hopping
• Camera * / GPS / Compass / Accelerometer: 5 megapixel camera with autofocus and double white LED flash, LED flashlight function; Integrated GPS (WAAS compatible); integrated compass; built-in accelerometer
