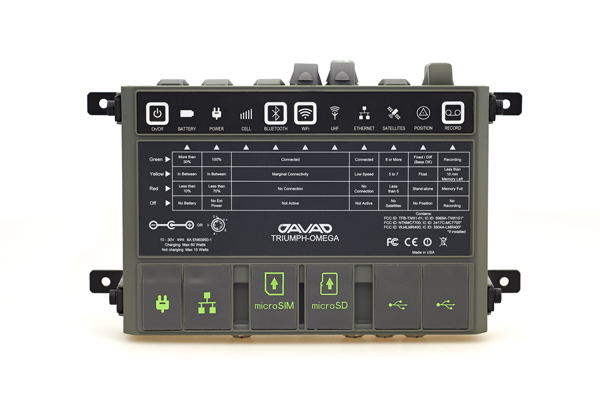

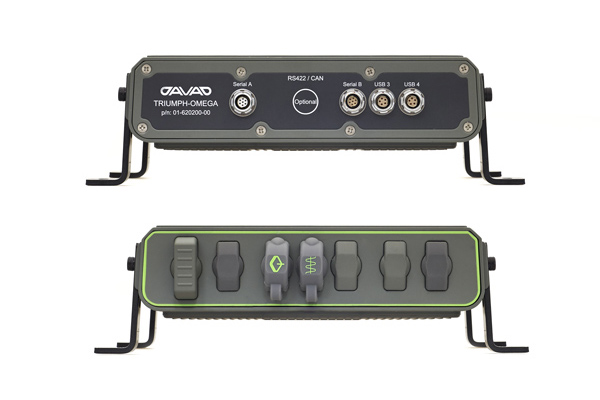

JAVAD TRIUMPH-OMEGA GNSS Receiver


    Share this product


    Cette combinaison n'existe pas.



    OMEGA is the most advanced GNSS receiver. It does not include integrated antenna and controller. It is suited for applications like machine control and in marine and avionics applications. Adding GrAnt and any controller with J-Mobile makes a complete RTK systems. It is well suited for monitoring and network stations.
    OMEGA OMEGA
    Main Features

    GPS L1/L2/L2C/L5
    GLONASS L1/L2/L3
    QSZZ, QZSS LEX
    Galileo E1/E5A/E5B/E6
    BeiDou B1/B2/B3
    WAAS/EGNOS/MSAS (SBAS)
    Update rate 1Hz, 5Hz, 10Hz, 20Hz, 50Hz, 100Hz
    RTK rate 1Hz, 5Hz, 10Hz, 20Hz, 50Hz, 100Hz
    Real-time Data Input/Output JPS, RTCM SC104 v. 2.x and 3.x, CMR
    Real-time Data Output NMEA 0183 v. 2.x and 3.0, BINEX, RINEX
    RAIM
    Data recording up to 16GB
    IEEE 1588 protocol support



    In-Band Interference Rejection
    Multi-Base Code Differential Rover
    Code Differential Base
    Advanced Multipath Reduction
    Event marker
    1 PPS timing strobe
    CAN port
    External Reference Frequency Input/Output
    Up to 2 high-speed RS232/RS422 serial port
    USB port
    Ethernet
    WiFi 5 GHz and 2.4 GHz
    Bluetooth and Bluetooth LE
    Internal 4G LTE Mini Card
    Internal Radio Modem
    External GNSS Antenna TNC Female connector
