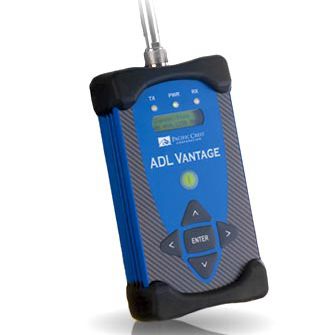

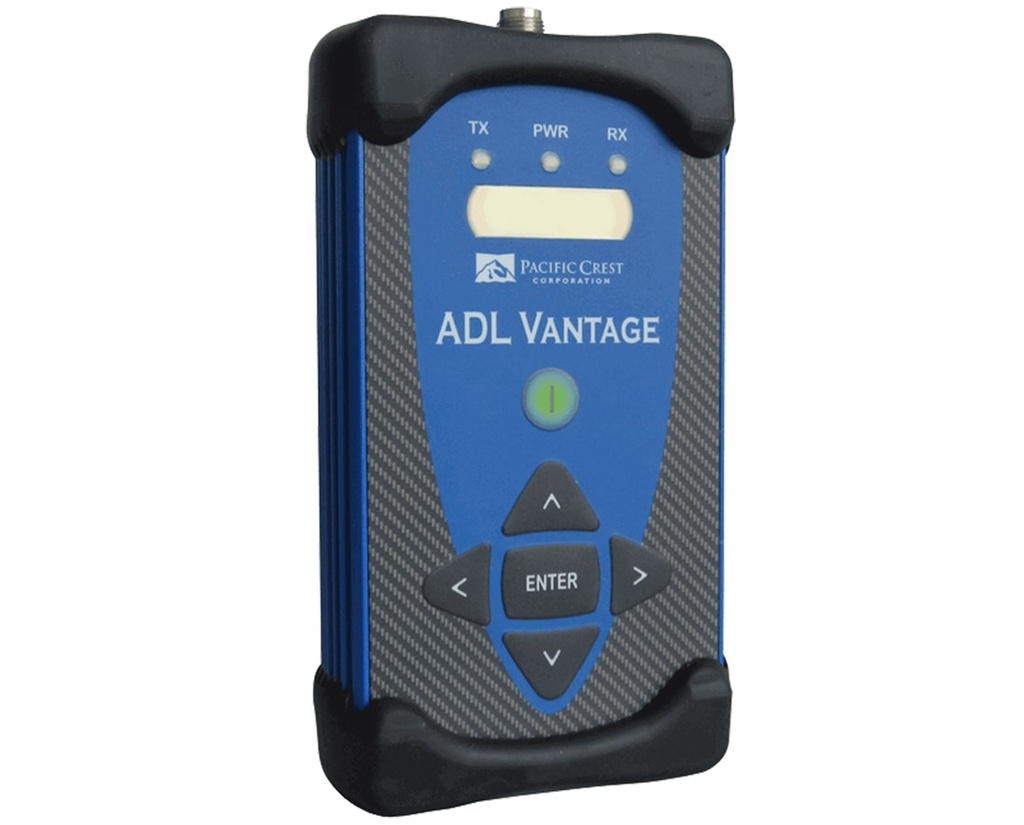

ADL Vantage -Pacific Crest (Stonex)

ADL Vantage is an advanced, high speed, wireless data link built to survive the rigors of GNSS/RTK surveying and precise positioning
Description
This sophisticated 0.1-4.0 Watt radio modem utilizes Pacific Crest’s next generation Advanced Data Link (ADL) technology while remaining backward compatible with existing Pacific Crest, Trimble and other products. ADL Vantage’s full-function user interface streamlines field configuration and troubleshooting so you can maintain maximum productivity. For the most rugged and reliable digital data link, go with the Geomatics industry’s new standard in wireless communications – ADL Vantage.
Key features:
Multi-function user interface allows radio configuration and troubleshooting in the field: change configuration to adapt to changes in field equipment
Heavy-Duty Construction: all metal construction for the ultimate in impact and EMI resistance, environmentally sealed to IP67 standard
High Over-the-Air Link Rate 19,200 bps (both GMSK and 4FSK) supports 1Hz RTK corrections for multi-GNSS receivers
Configurable Transmit Power 0.1-2 W for longer battery life, 4.0 W for longer range (where permitted)
Advanced 40 MHz Bandwidth (430-450 and 450-470 MHz models ): Advanced Data Link design for high performance over the entire band
Software-Derived Channel Bandwidth compatible with both 12.5 and 25 kHz radios

Multi-function user interface
IP67: shock resistant
Link speed: 19,200 bps (GSMK and 4FSK)
Support RTK corrections of several GNSS receivers (up to 1Hz)
Configurable transmission power: 0.1 to 2 W for better battery life, 4 W for long range (when allowed)
40 MHz bandwidth
Software compatible with 12.5 and 25 kHz licenses
