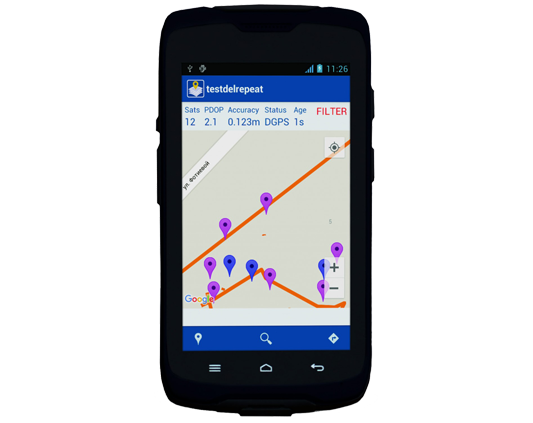

MobileMapper 60 (Spectra Precision)

Smartphone GNSS data collecting just got brighter, faster and easier.
The rugged MobileMapper­® 60 offers superior durability, efficiency and accuracy for professional handheld data collection. The MobileMapper 60 all-in-one GNSS receiver and smartphone provides the ultimate in accuracy (including Post-processing) and convenience for handheld geospatial data collection. Its slim, lightweight all-weather design complete with a hand strap features a large, high resolution screen for easy viewing and data manipulation.
Running the latest Android™️8.0, it has a fast 2.2 GHz processor, 4 GB of memory, 64 GB of storage and full-day battery life for managing large data sets with ease and speed. Bluetooth®, 4G LTE, and Wi-Fi capable, the MobileMapper 60 is ideally suited for a wide range of jobs, including cadastral, survey, topographic, forestry, utilities, and much more.
MobileMapper 60 works with all Trimble applications including MobileMapper Field and Penmap for Android (A hyrbrid survey & GIS app for data collection and stake out).

GNSS features
Internal antenna: 72 channels
GPS L1 C / A
GLONASS L1 C / A
Galileo E1
Beidou B1
SBAS: WAAS / EGNOS / MSAS / GAGAN / QZSS
Triple constellation system: GPS / GAL or GPS / GLO / GAL or GPS / Beidou / GAL
Connector for external antenna
Precision specifications2
(RMS horizontal)
Real-time SBAS3: generally <1.5 meters
Post-treatment: generally <0.8 meters
Processor
Qualcomm Snapdragon 626
Eight hearts
Clock frequency: 2.2 GHz
Operating system
Android® 8.0 (Google certified)
Available languages: Afrikaner, German, English, Spanish, French, Italian, Portuguese (Portugal and Brazil), Japanese, Korean, Simplified Chinese, Greek, Russian, Azerbaijani, Czech, Danish, Lithuanian, Hungarian, Dutch, Norwegian (Bokmål), Romanian, Finnish, Swedish, Turkish, Bulgarian, Serbian (Cyrillic), Hindi, Polish
The software package includes: Google Mobile Services, Sat-Look
Communications - Cellular
GSM (850,900,1800,1900), WCDMA (B1, B2, B5, B8),
LTE-FDD (B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B17 / B20 / B25 / B28),
LTE-TDD (B38 / B39 / B40 / B41), TD-SCDMA (B34 / B39)
Wi-Fi (IEEE) 802.11 b / g / n
Bluetooth 4.1
USB 3.0 (type C)
NFC
SAR / DAS
0.256W / Kg (head) / 1.644W / Kg (body)
Dimensions 196 x 93.4 x 17.2 mm
Keyboard
2 volume keys, on / off / restart key, 4 programmable keys standard buttons on Android touch screens
On-screen keyboard
Memory
4 GB of SDRAM2
Storage: 64 GB (non-volatile) 2
Micro SD memory card (up to 128 GB)
Operating environment
Operating temperature: -20 ° C to +55 ° C
Storage temperature: 40 ° C to +70 ° C
Humidity: 95% non-condensing
Waterproof and dustproof: IP-67
Free fall: 1.2 m (MIL-STD-810G)
Power specifications
Lithium-ion battery, 8000 mAh
Battery life:> 15 hours at 20 ° C with GPS activated
Charging time: 4 hours
Removable battery
USB 3.0 interface (type C)
Socket for external antenna
Audio jack connector via USB adapter
Pogo pin connector
Multimedia and sensors
13 MP rear camera with auto focus and LED flash
5 MP front camera with fixed focus
Digital compass
Gyrometer
Accelerometer
Barometer
Loud speaker
Microphone
Light sensor
